Understanding ESP32 Memory Usage: A Deep Dive into Firmware Size

D/IRAM (Data/Instruction RAM)

D/IRAM (Data/Instruction RAM) is a versatile memory region used to store both data and executable code:

• Used stat D/IRAM: 98768 bytes (222528 remain, 30.7% used)

  • 98768 bytes are currently used.

  • 222528 bytes remain free.

  • 30.7% used indicates that nearly a third of this memory is utilized.

This region's efficient usage is vital for the performance of your application, as it directly impacts the CPU's ability to access data and execute code.

.data Section

The .data section holds initialized global and static variables:

• .data size: 11112 bytes

  • 11112 bytes are used for these variables.

At startup, the values for these variables are copied from Flash memory to RAM. This ensures that your application has the necessary initial values for its variables.

.bss Section

The .bss section contains uninitialized global and static variables:

• .bss size: 18104 bytes

  • 18104 bytes are used for these variables.

Unlike the .data section, the .bss section does not occupy space in the Flash binary; it only takes up RAM when the program runs. The system zeroes this memory at startup.

.text Section

The .text section is where the executable code resides:

• .text size: 69552 bytes

  • 69552 bytes are used for the code.

Efficient code management ensures that your firmware's logic fits within the available memory, impacting performance and stability.

Flash Memory

Flash memory is crucial for storing your firmware's executable code and read-only data:

• Used Flash size: 736532 bytes

  • This is the total Flash memory used by the firmware.

Executable Code

• .text: 604548 bytes

  • 604548 bytes of Flash are used for storing the executable code.

Read-Only Data

• .rodata: 128912 bytes

  • 128912 bytes are used for read-only data such as constants and string literals.

Total Image Size

The Total image size reflects the complete size of your firmware, which may include padding:

• Total image size: 817196 bytes (.bin may be padded larger)

  • 817196 bytes is the size of the firmware image.

  • The binary file (.bin) may be larger due to padding added for alignment or other bootloader requirements.

Memory Regions Breakdown

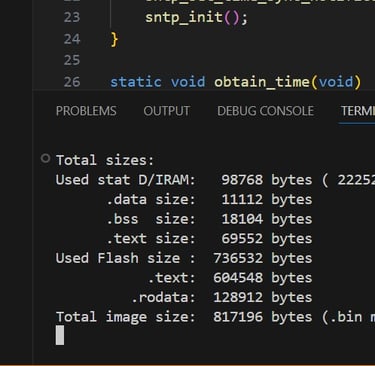

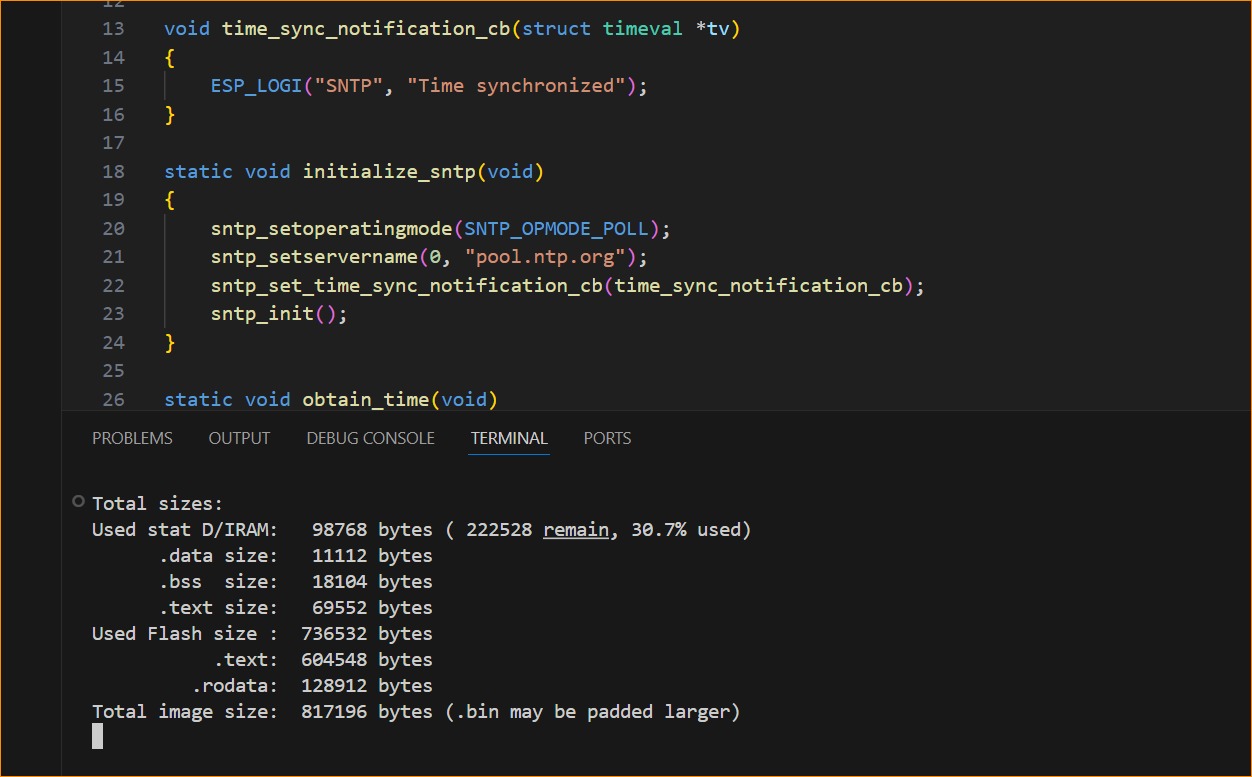

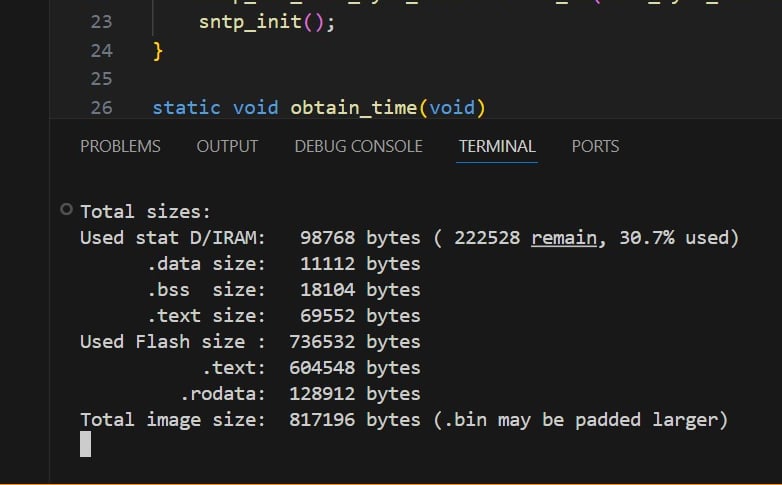

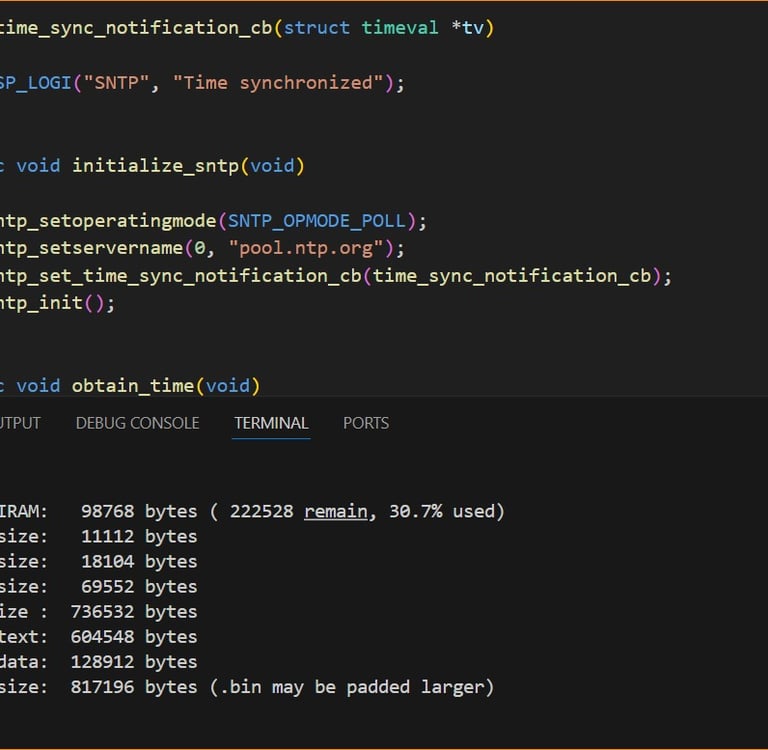

When we compile and link your ESP32 project, the output provides a detailed breakdown of how memory is allocated. Here’s an example of such a summary

Let's break down what each of these memory sections represents.
